Granule

Sample packages of granular substances

Examples of granular substances :
snacks / crispy foods, biscuits, macaroni, coffee cherries, peanuts, beans, spices, round candies (flavored lozenges), medicinal herbs pill, etc.

Tiger Granule Machine Variants :

Specification Center Seal Gusset Seal

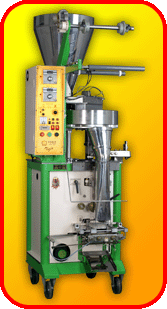

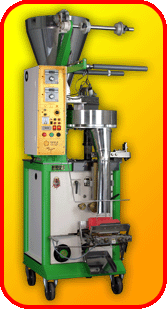

Picture Tiger Granule Center Seal Tiger Granule Gusset Seal

Packing Size Min. 60 x 80 mm.
Max. 160 x 250 mm.

Speed 40 − 70 bags / min.

Speed Controller Variable Speed Pulley

Speed Reducer 1 : 20

Main Motor AC 220 V. ; 1 phase ; 50 Hz. ; 1 HP

Power AC 220 V. ; 4.5 − 11.5 A. ; 1 phase ; 50 Hz.

Heater Upper : 500 W.
Lower : 500 W.

Dimension (L x W x H) 1000 x 720 x 2100 mm.

Weight 298.5 kg.

Jumbo Granule Machine Variants :

Specification Center Seal Three Side Seal Four Side Seal

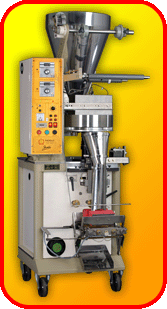

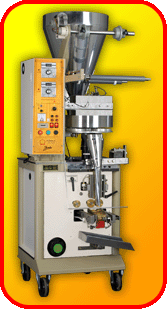

Picture Jumbo Granule Center Seal Jumbo Granule Three Side Seal Jumbo Granule Four Side Seal

Packing Size Min. 30 x 40 mm.
Max. 140 x 180 mm. Min. 25 x 40 mm.
Max. 130 x 150 mm. Min. 30 x 40 mm.
Max. 130 x 150 mm.

Speed 40 − 100 bags / min.

Speed Controller Variable Speed Pulley

Speed Reducer 1 : 20

Main Motor AC 220 V.
1 phase ; 50 Hz. ; 1 HP AC 220 V.
1 phase ; 50 Hz. ; 0.75 HP AC 220 V.
1 phase ; 50 Hz. ; 1 HP

Power AC 220 V. ; 4.5 − 11.0 A.
1 phase ; 50 Hz. AC 220 V. ; 3.8 − 9.0 A.
1 phase ; 50 Hz. AC 220 V. ; 4.5 − 12.5 A.
1 phase ; 50 Hz.

Heater Upper : 350 W.
Lower : 500 W. Upper : 350 W.
Lower : 450 W. Upper Rear : 350 W.
Upper Front : 350 W.
Lower : 450 W.

Dimension (L x W x H) 990 x 690 x 1930 mm. 990 x 690 x 1900 mm.

Weight 277 kg. 266 kg. 292 kg.

Optional parts (not included in machine standard) :
date / batch coder (emboss or hot ink printer), nitrogen flush device, rolling brush, etc.

Notes :

Provided with product in feed vibration tray and sensor to stabilize the volume of packed substances on the volume disc to assure smooth filling into volume cups and to avoid damage of product caused by grating process.
The machines have magnificent features of simple, low cost, easy to operate and heavy duty.
Please click here for information about various sealing types, sealing patterns and cutting types.
Please click here for main differences between Tiger and Jumbo model machine.
Please click here to make an inquiry.
Specification is subject to change.

Specification	Center Seal	Gusset Seal
Packing Size	Min. 60 x 80 mm. Max. 160 x 250 mm.
Speed	40 − 70 bags / min.
Speed Controller	Variable Speed Pulley
Speed Reducer	1 : 20
Main Motor	AC 220 V. ; 1 phase ; 50 Hz. ; 1 HP
Power	AC 220 V. ; 4.5 − 11.5 A. ; 1 phase ; 50 Hz.
Heater	Upper : 500 W. Lower : 500 W.
Dimension (L x W x H)	1000 x 720 x 2100 mm.
Weight	298.5 kg.

Specification	Center Seal	Three Side Seal	Four Side Seal
Packing Size	Min. 30 x 40 mm. Max. 140 x 180 mm.	Min. 25 x 40 mm. Max. 130 x 150 mm.	Min. 30 x 40 mm. Max. 130 x 150 mm.
Speed	40 − 100 bags / min.
Speed Controller	Variable Speed Pulley
Speed Reducer	1 : 20
Main Motor	AC 220 V. 1 phase ; 50 Hz. ; 1 HP	AC 220 V. 1 phase ; 50 Hz. ; 0.75 HP	AC 220 V. 1 phase ; 50 Hz. ; 1 HP
Power	AC 220 V. ; 4.5 − 11.0 A. 1 phase ; 50 Hz.	AC 220 V. ; 3.8 − 9.0 A. 1 phase ; 50 Hz.	AC 220 V. ; 4.5 − 12.5 A. 1 phase ; 50 Hz.
Heater	Upper : 350 W. Lower : 500 W.	Upper : 350 W. Lower : 450 W.	Upper Rear : 350 W. Upper Front : 350 W. Lower : 450 W.
Dimension (L x W x H)	990 x 690 x 1930 mm.	990 x 690 x 1900 mm.
Weight	277 kg.	266 kg.	292 kg.
