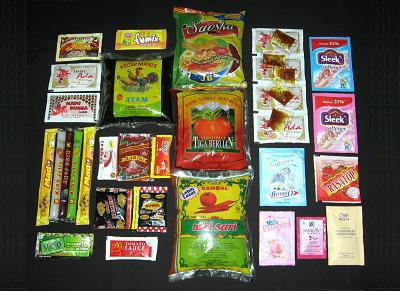

Examples of liquid substances :
ketchup, tomato sauce, chilly sauce, fresh milk, honey, syrup, supplement drink, mini jelly stick, palm oil, liquid medicinal herbs, shampoo, liquid (hand) soap, fertilizers, etc.

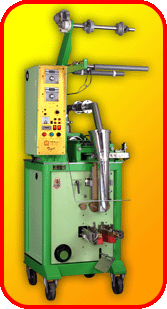

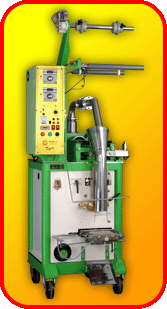

Tiger Liquid Machine Variants :

Specification	Center Seal	Three Side Seal
Packing Size	Min. 80 x 130 mm. Max. 160 x 250 mm.	Min. 90 x 130 mm. Max. 170 x 250 mm.
Volume	100 − 1000 cc.
Speed	20 − 70 bags / min. (for Speed Reducer = 1 : 40) ---------------------------------------- or ---------------------------------------- 18 − 52 bags / min. (for Speed Reducer = 1 : 50)
Speed Controller	Variable Speed Pulley
Speed Reducer	1 : 40 ---------------------------------------- or ---------------------------------------- 1 : 50
Main Motor	AC 380 V. ; 3 phase ; 50 Hz. ; 1.5 HP ---------------------------------------- or ---------------------------------------- AC 220 V. ; 1 phase ; 50 Hz. ; 1.5 HP
Power	AC 380 V. ; 2.1 − 2.6 A. ; 3 phase RST-N-E ; 50 Hz. and AC 220 V. ; 4.5 A. ; 1 phase ; 50 Hz. (for Heater) ---------------------------------------- or ---------------------------------------- AC 220 V. ; 5.5 − 13.5 A. ; 1 phase ; 50 Hz.
Heater	Upper : 500 W. ; 220 V. Lower : 500 W. ; 220 V.
Dimension (L x W x H)	1210 x 720 x 2000 mm.
Weight	313 kg.

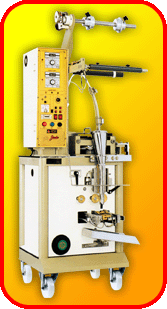

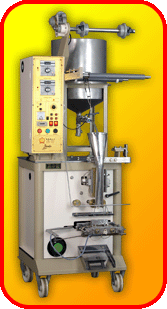

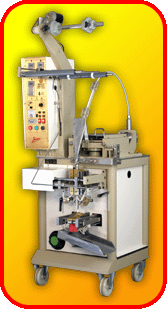

Jumbo Liquid Machine Variants :

Specification	Center Seal	Three Side Seal	Four Side Seal
Packing Size	Min. 20 x 40 mm. Max. 140 x 180 mm.	Min. 25 x 40 mm. Max. 130 x 150 mm.	Min. 40 x 40 mm. Max. 130 x 150 mm.
Volume	5 − 100 cc.
Speed	40 − 100 bags / min.
Speed Controller	Variable Speed Pulley
Speed Reducer	1 : 20
Main Motor	AC 220 V. ; 1 phase ; 50 Hz. ; 1 HP
Power	AC 220 V. ; 4.5 − 11.5 A. ; 1 phase ; 50 Hz.		AC 220 V. ; 4.5 − 13.5 A. 1 phase ; 50 Hz.
Heater	Upper : 500 W. Lower : 500 W.	Upper : 500 W. Lower : 450 W.	Upper Rear : 500 W. Upper Front : 500 W. Lower : 450 W.
Dimension (L x W x H)	1100 x 690 x 1830 mm.
Weight	277 kg.	274 kg.	292 kg.
Mixer : (optional)
Motor	AC 220 V. ; 1 phase ; 50 Hz. ; 0.25 HP
Power	AC 220 V. ; 1.5 − 2.4 A. ; 1 phase ; 50 Hz.
Dimension (L x W x H)	550 x 550 x 1500 mm.
Weight	42 kg.

Optional parts (not included in machine standard) :
date / batch coder (emboss or hot ink printer), mixer, etc.

• The machines can run at high speed because the injection pump is designed properly in order to make perfect sealing where there is no liquid material left between sealing areas.
• The machines have magnificent features of simple, low cost, easy to operate and heavy duty.
• Please click here for information about various sealing types, sealing patterns and cutting types.
• Please click here for main differences between Tiger and Jumbo model machine.
• Please click here to make an inquiry.
• Specification is subject to change.
