Examples of paste substances :
detergent cream, cooking spices, etc.

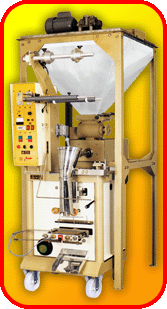

Jumbo Paste - Gear Pump Machine Variants :

Specification		Center Seal
Packing Size		Min. 60 x 80 mm. Max. 150 x 180 mm.
Volume		30 − 500 gr.
Speed		20 − 70 bags / min.
Speed Controller		Variable Speed Pulley
Speed Reducer	Main Motor	1 : 20 ------------------------------ or ------------------------------ 1 : 40
	Mixer Motor	1 : 30
	Filling Pump Motor	1 : 10
Main Motor		AC 220 V. ; 1 phase ; 50 Hz. ; 0.75 HP
Mixer Motor		AC 220 V. ; 1 phase ; 50 Hz. ; 1 HP
Filling Pump Motor		AC 220 V. ; 1 phase ; 50 Hz. ; 1 HP
Power		AC 220 V. ; 12.5 − 20.0 A. ; 1 phase ; 50 Hz.
Heater		Upper : 350 W. Lower : 500 W.
Dimension (L x W x H)		1440 x 870 x 2280 mm.
Weight	Packaging Unit	246 kg.
	Filling Unit	194 kg.

Jumbo Paste - Piston Pump Machine Variants :

Specification			Three Side Seal
Packing Size			Min. 25 x 40 mm. Max. 130 x 150 mm.
Volume			5 − 100 gr.
Speed			20 − 70 bags / min.
Speed Controller			Variable Speed Pulley
Speed Reducer	Main Motor		1 : 40
	Mixer Motor	Standard	1 : 11
		with Extruder	1 : 17
Main Motor			AC 380 V. ; 3 phase ; 50 Hz. ; 1.5 HP
Mixer Motor		Standard	AC 380 V. ; 3 phase ; 50 Hz. ; 1 HP
		with Extruder	Inverter AC 220 V. ; 1 phase ; 50 Hz. for motor AC 220 V. ; 3 phase ; 50 Hz. ; 1 HP
Power		Standard	AC 380 V. ; 3.5 − 4.6 A. ; 3 phase RST-N-E ; 50 Hz. and AC 220 V. ; 4.5 A. ; 1 phase ; 50 Hz. (for Heater)
		with Extruder	AC 380 V. ; 2.8 − 3.6 A. ; 3 phase RST-N-E ; 50 Hz. and AC 220 V. ; 7.0 A. ; 1 phase ; 50 Hz. (for Heater & Inverter)
Heater			Upper : 500 W. Lower : 500 W.
Dimension (L x W x H)		Standard	1600 x 690 x 2500 mm.
		with Extruder	1820 x 690 x 2500 mm.
Weight		Standard	393 kg.
		with Extruder	441 kg.
Extruder : (optional)
Motor			AC 380 V. ; 3 phase ; 50 Hz. ; 0.5 HP

Optional parts (not included in machine standard) :
date / batch coder (emboss or hot ink printer), extruder, etc.

• The machines can stop automatically if the substance filter is gagged by solid waste brought by the substance to be packed in order to avoid unstable volume of packages.
• The machines have magnificent features of simple, low cost, easy to operate and heavy duty.
• Please click here for information about various sealing types, sealing patterns and cutting types.
• Please click here to make an inquiry.
• Specification is subject to change.
